Image shown is a representation only. Actual product may vary -
-

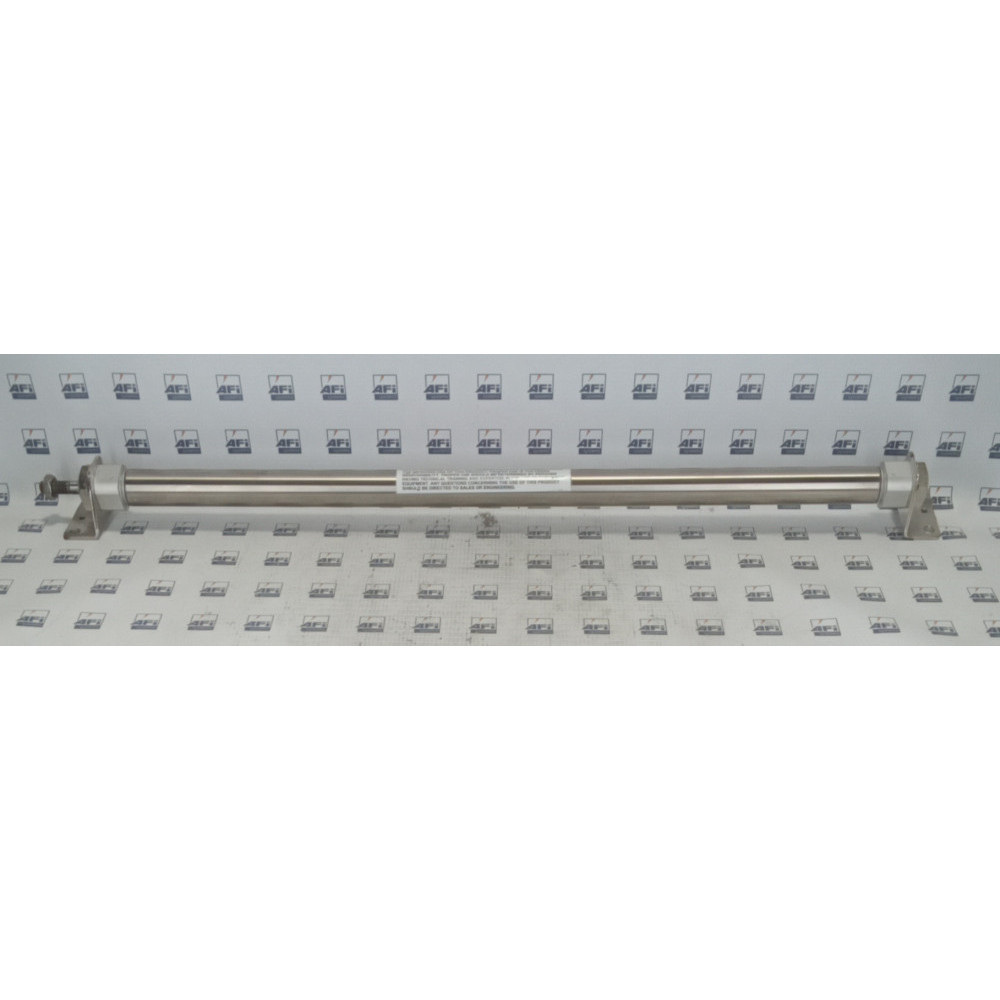

SMC CDM2L25-525A-X142US
Main function Pneumatic cylinder Product series / family nameCM2 series Sub-range nameCM2-Z Basic type Bore size25mm (B25mm) Stroke length525mm (S525mm) Functions Standard double-acting pneumatic cylinder actuator Design built-in magnet air cushion Pressure281psi / 1.5MPa (proof) 7.3psi / 0.05MPa (min.) 145psi / 1.0MPa (max.) Connection type Rod-end male thread Rc1/8" pneumatic threaded ports x 2 Mounting mode Axial foot mounting (L) Speed50-750mm/s (piston) Ambient air temperature for operation-10...+70 °C
