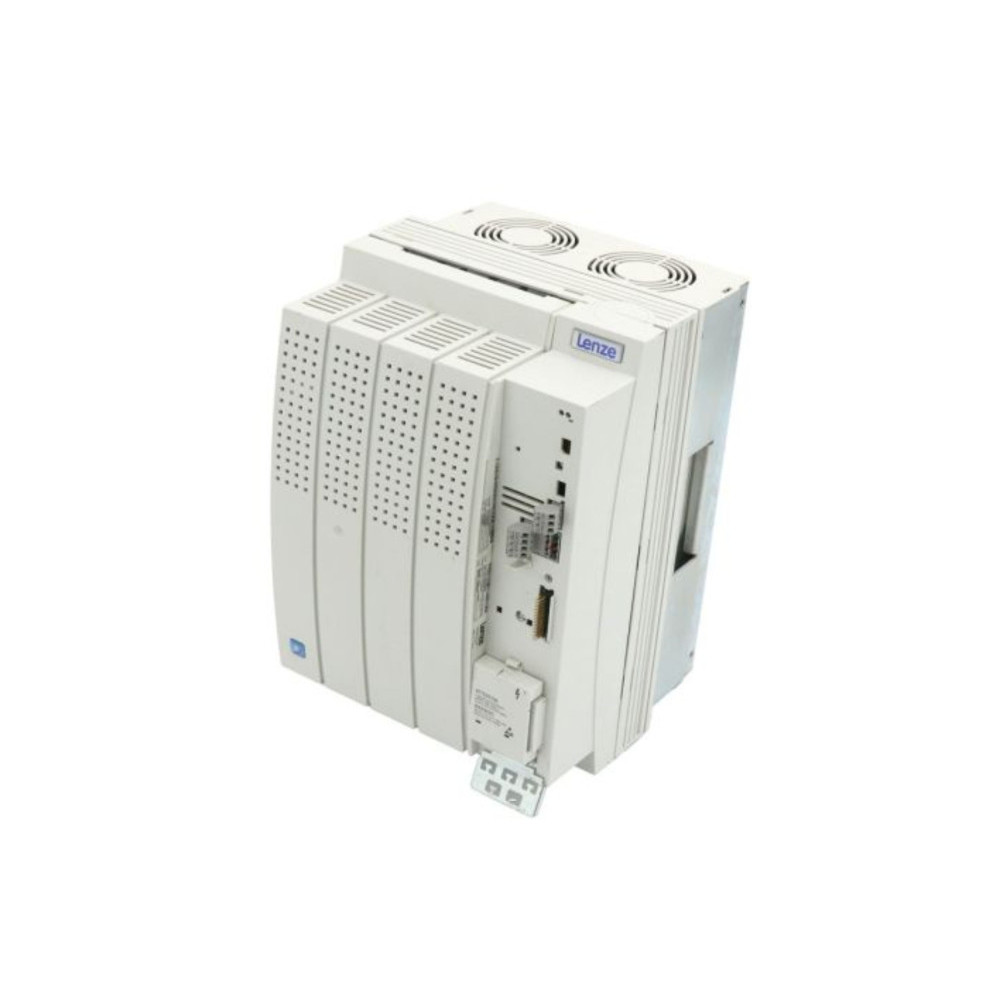

Lenze E82EV223K4B241 22kW 8200 Vector Drive
The 8200 Vector E82EV223K4B241 by Lenze is a 22kW, 30HP, 47A AC drive /w/ Three Phase 380-480V AC input. With years of experience working on Lenze products, AFi Systems are equipped to repair and supply the whole range of 8200 Vector VSDs.
General Information
Terminals include: 1x AI, 1x AQ, 5x DI, 1x DQ and 2x relay output(s).
Features a IP20, NEMA 1 rated enclosure, 402mm high x 250mm wide x 250mm deep /w/ 15kg weight.
Bus Function Modules
The 8200 Vector line supports a variety of possible bus function modules, listed below:
- PROFIBUS-DP (E82ZAFPC010)
- PROFIBUS I/O (E82ZAFPC201)
- System Bus CAN PT (E82ZAFCC010)
- System Bus CAN I/O PT (E82ZAFCC210)
- System Bus CAN I/O RS PT (E82ZAFCC100)
- CANopen PT (E82ZAFUC010)
- DeviceNet PT (E82ZAFVC010)
- INTERBUS PT (E82ZAFIC010)
- LECOM-B PT (E82ZAFLC010)
- AS Interface PT (E82ZAFFC010)
Communications Modules
In addition to the above bus function modules, the 8200 Vector range also supports several communications modules, listed below:
- PROFIBUS-DP (EMF2133IB)
- System Bus CAN (EMF2171IB, EMF2172IB)
- CANopen (EMF2178IB)
- DeviceNet (EMF2179IB)
- INTERBUS (EMF2113IB)
- LECOM-A (EMF2102IBCV004)
- LECOM-B (EMF2102IBCV002)
- LECOM-A/B (EMF2102IBCV001)
- LECOM-LI (EMF2102IBCV003)
Our Repair Process
Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 8200 Vector variable speed drive, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your inverter.
Any Questions?
If you require any assistance or have any questions about whether this 22kW 8200 Vector variable speed drive is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your 8200 Vector requests, and can ship drives to you quickly.
E82EV223K4B241 Specifications
| AC Drive Application | HVAC Fan & Pump |
| AC Drive Input Voltage (VAC) | 380...480V AC |
| AC Drive Heavy Duty Output (HP) | 30 |
| AC Drive Heavy Duty Output (Amps) | 47 |
| AC Drive Heavy Duty Output (kw) | 22 |
| AC Drive Normal Duty Output (HP) | 40 |
| AC Drive Normal Duty Output (Amps) | 56 |
| AC Drive Normal Duty Output (kw) | 30 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP20 |
| AC Drive NEMA Rating | NEMA 1 |
| AC Drive Filter | No Filter |
| AC Drive Loop | Closed, Open |
| AC Drive Nr Digital Inputs | 5 |
| AC Drive Nr Analog Inputs | 1 |
| AC Drive Nr Digital Outputs | 1 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Relay Outputs | 2 |
| AC Drive Height (mm) | 402 |
| AC Drive Depth (mm) | 250 |
| AC Drive Width (mm) | 250 |
| AC Drive Weight (kg) | 15 |
