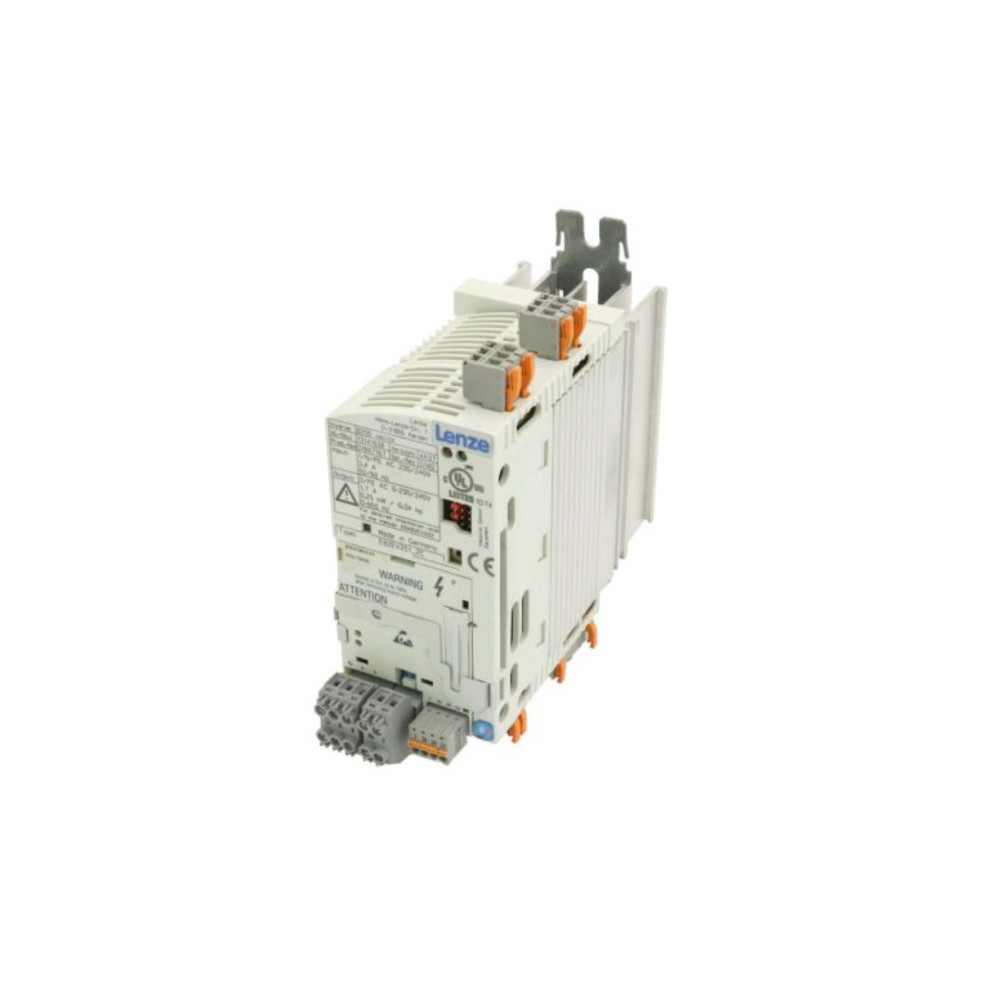

Image shown is a representation only. Actual product may vary
Lenze E82EV371K2C200 0.37kW 8200 Vector Drive
The 8200 Vector E82EV371K2C200 by Lenze is a 0.37kW, 0.5HP, 2.4A VSD /w/ Single Phase 200-240V AC input. With years of experience working on Lenze products, AFi Systems are able to repair and supply the full range of 8200 Vector VFDs.
General Information
Terminals include: 1x AI, 1x AQ, 5x DI, 1x DQ and 1x relay output(s).
Features a IP20, NEMA 1 rated enclosure, 213mm high x 60mm wide x 140mm deep /w/ 0.8kg weight.
Bus Function Modules
The 8200 Vector line supports a variety of possible bus function modules, listed below:
- PROFIBUS-DP (E82ZAFPC010)
- PROFIBUS I/O (E82ZAFPC201)
- System Bus CAN PT (E82ZAFCC010)
- System Bus CAN I/O PT (E82ZAFCC210)
- System Bus CAN I/O RS PT (E82ZAFCC100)
- CANopen PT (E82ZAFUC010)
- DeviceNet PT (E82ZAFVC010)
- INTERBUS PT (E82ZAFIC010)
- LECOM-B PT (E82ZAFLC010)
- AS Interface PT (E82ZAFFC010)
Communications Modules
In addition to the above bus function modules, the 8200 Vector family also supports several communications modules, listed below:
- PROFIBUS-DP (EMF2133IB)
- System Bus CAN (EMF2171IB, EMF2172IB)
- CANopen (EMF2178IB)
- DeviceNet (EMF2179IB)
- INTERBUS (EMF2113IB)
- LECOM-A (EMF2102IBCV004)
- LECOM-B (EMF2102IBCV002)
- LECOM-A/B (EMF2102IBCV001)
- LECOM-LI (EMF2102IBCV003)
Our Repair Process
Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 8200 Vector variable speed drive, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your inverter.
Any Questions?
If you require any assistance or have any questions about whether this 0.37kW 8200 Vector VSD is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your 8200 Vector requests, and can ship drives to you quickly.
E82EV371K2C200 Specifications
| AC Drive Application | HVAC Fan & Pump |
| AC Drive Input Voltage (VAC) | 200...240V AC |
| AC Drive Heavy Duty Output (HP) | 0.5 |
| AC Drive Heavy Duty Output (Amps) | 2.4 |
| AC Drive Heavy Duty Output (kw) | 0.37 |
| AC Drive Phase | Single Phase |
| AC Drive Protection | IP20 |
| AC Drive NEMA Rating | NEMA 1 |
| AC Drive Filter | No Filter |
| AC Drive Loop | Closed, Open |
| AC Drive Nr Digital Inputs | 5 |
| AC Drive Nr Analog Inputs | 1 |
| AC Drive Nr Digital Outputs | 1 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Height (mm) | 213 |
| AC Drive Depth (mm) | 140 |
| AC Drive Width (mm) | 60 |
| AC Drive Weight (kg) | 0.8 |
