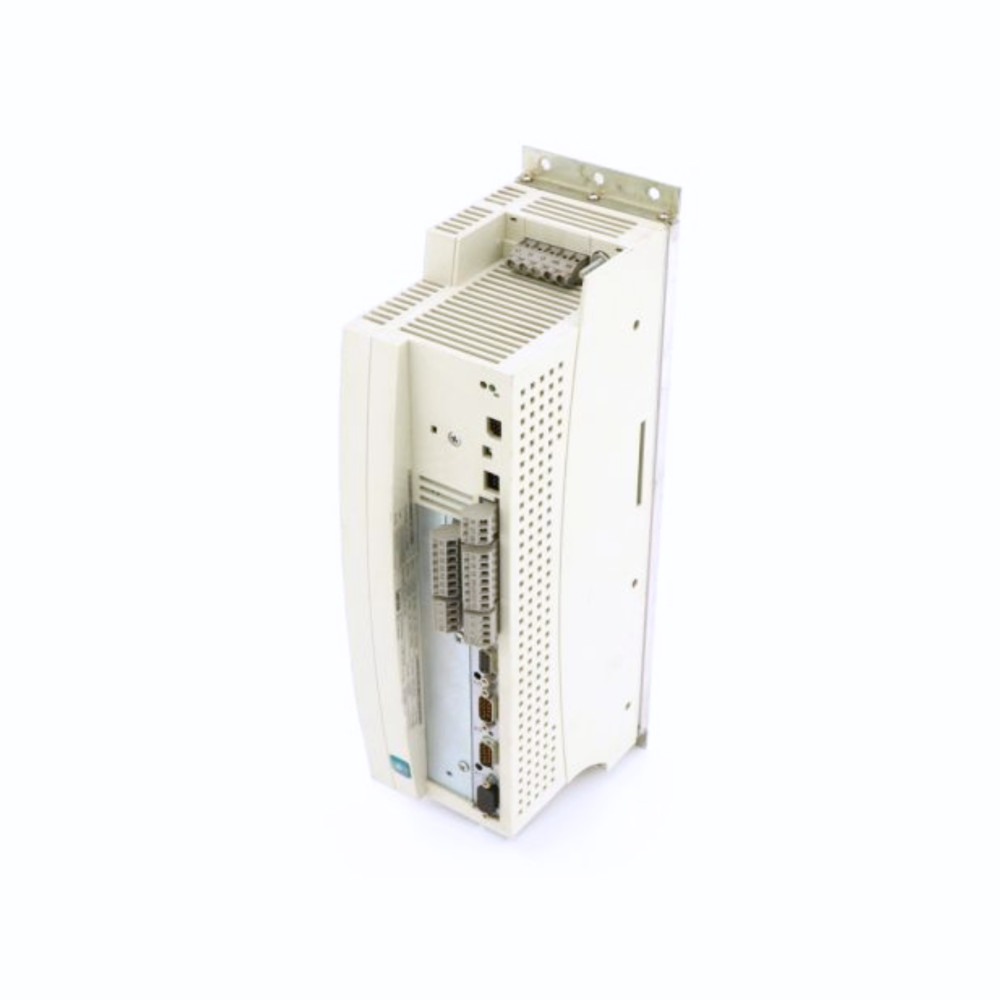

Lenze EVS9324-CK 3kW 7A 9300 Servo Drive
Manufactured by Lenze and part of the 9300 Servo line, the EVS9324-CK is a servo controller with a 3ph 380...480VAC supply and 3kW, 4HP, 7A output. With years of experience working on Lenze products, AFi Systems are fully prepared to repair and supply the full range of 9300 Servo drives.
General Information
Within a NEMA 1, IP20 rated frame, measuring 381mm x 97mm x 168mm (HxWxD) with a weight of 3.9kg.
Terminals include; 2x AI, (-10V...+10V, -20mA...+20mA), 2x AQ (-10V...+10V @ 2mAmax), 5x DI (8mA @ +24V; 0VLOW...+3VLOW, +12VHIGH...+30VHIGH), 2x DQ (50mAmax; 0VLOW...+3VLOW, +12VLOW...+30VLOW) and PTC/KTY input.
Drive Application
The EVS9324-CK is a 9300 Servo Technology PLC, denoted by the "-ET" suffix, featuring pre-configured PLC programming solutions.
Developed for the general use of technology functions, it is required for use of library functions or pre-configured solutions from the technology packages. Technology packages are available for point-to-point positioning drives, cam drives with individual motion profiles, winding drives with dancer control or tension control, and more.
This drive is suitable for reel changer, handling and robotics with decentralised intelligence, rack drive, and complex motion control applications amongst others.
Communication Modules
The 9300 Servo range of servo inverters supports a wide host of communication modules. These are listed below, with their order numbers and interface types.
Keypad XT - EMZ9371BC
LECOM-A/B (RS-422/485) - EMF2102IBV001
LECOM-B (RS-485) - EMF2102IBV002
LECOM-LI (Optical Fibre) - EMF2102IBV003
LON - EMF2141IB
INTERBUS - EMF2113IB
INTERBUS Loop - EMF2112IB
PROFIBUS-DP - EMF2133IB
DeviceNet/CANopen - EMF2175IB
Our Repair Process
Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 9300 Servo controller, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your servo controller.
Any Questions?
If you require any assistance or have any questions about whether this 3kW 9300 Servo controller is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your 9300 Servo requests, and can ship drives to you quickly.
EVS9324-CK Specifications
| Drive Application | General Purpose, High Performance |
| Input Voltage (V) | 380...480 |
| Power Output (kW) | 3 |
| Power Output (HP) | 4 |
| Continuous Current Output (A) | 7 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| NEMA Rating | NEMA 1 |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| No. of Digital Inputs | 5 |
| No. of Analog Inputs | 2 |
| No. of Digital Outputs | 4 |
| No. of Analog Outputs | 2 |
| Height (mm) | 381 |
| Width (mm) | 97 |
| Depth (mm) | 168 |
| Weight (kg) | 3.9 |
