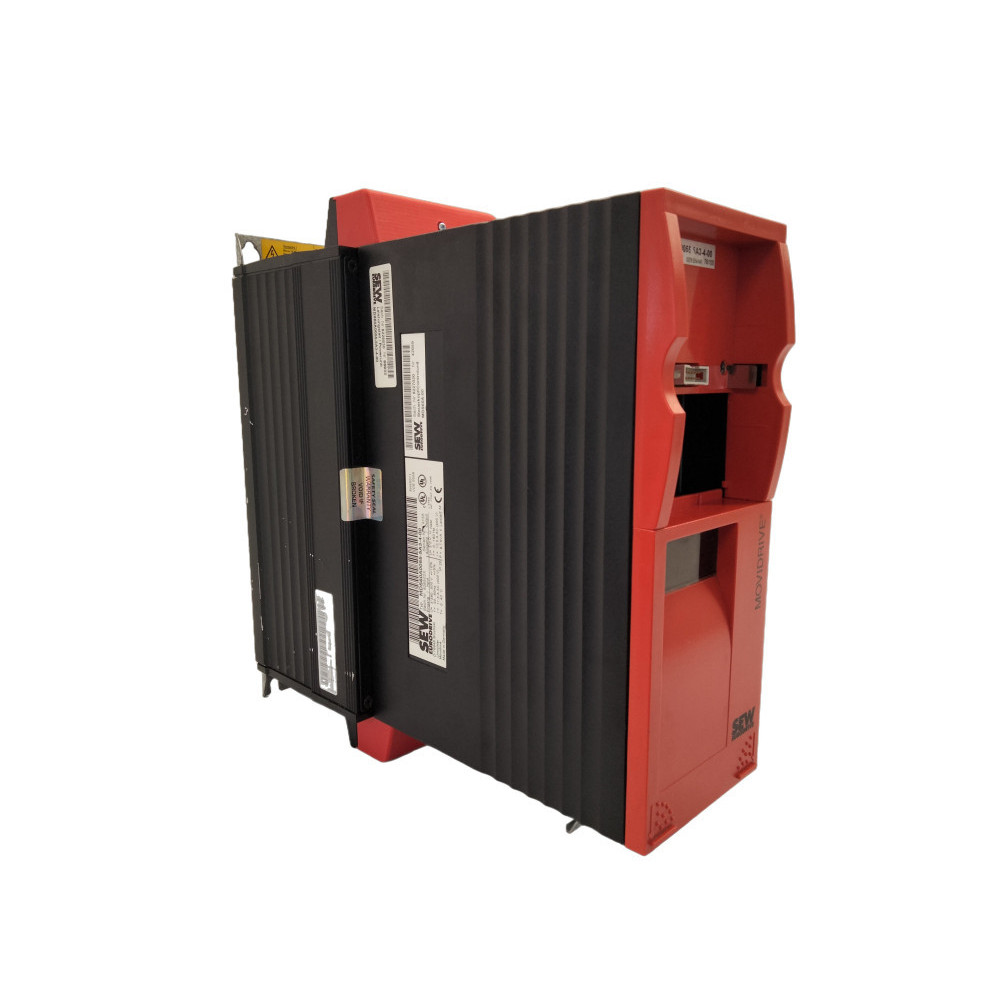

Sew-Eurodrive MDS60A0055-5A3-4-00 Movidrive MDS 5.5kW Servo Drive
MDS60A0055-5A3-4-00 Movidrive MDS Series Servo Drive by Sew-Eurodrive /w/ 3ph 380...500VAC supply @ 50/60Hz and 5.5kW, 7.5HP, 12.5A output.
Terminals include: 1x AI, 6x DI and 3x DQ. IP20, NEMA 1 rated enclosure, frame size 2; 130mm wide x 336mm high x 325mm deep /w/ 6.6kg weight.
MDS60A0055-5A3-4-00 Specifications
| AC Drive Input Voltage (VAC) | 380...500 |
| AC Drive Heavy Duty Output (HP) | 7.5 |
| AC Drive Heavy Duty Output (Amps) | 12.5 |
| AC Drive Heavy Duty Output (kw) | 5.5 |
| AC Drive Phase | Three |
| AC Drive Protection | IP20 |
| AC Drive NEMA Rating | NEMA 1 |
| AC Drive Filter | Industrial |
| AC Drive Nr Digital Inputs | 6 |
| AC Drive Nr Analog Inputs | 1 |
| AC Drive Nr Digital Outputs | 3 |
| AC Drive Height (mm) | 336 |
| AC Drive Depth (mm) | 325 |
| AC Drive Width (mm) | 130 |
| AC Drive Weight (kg) | 6.6 |
