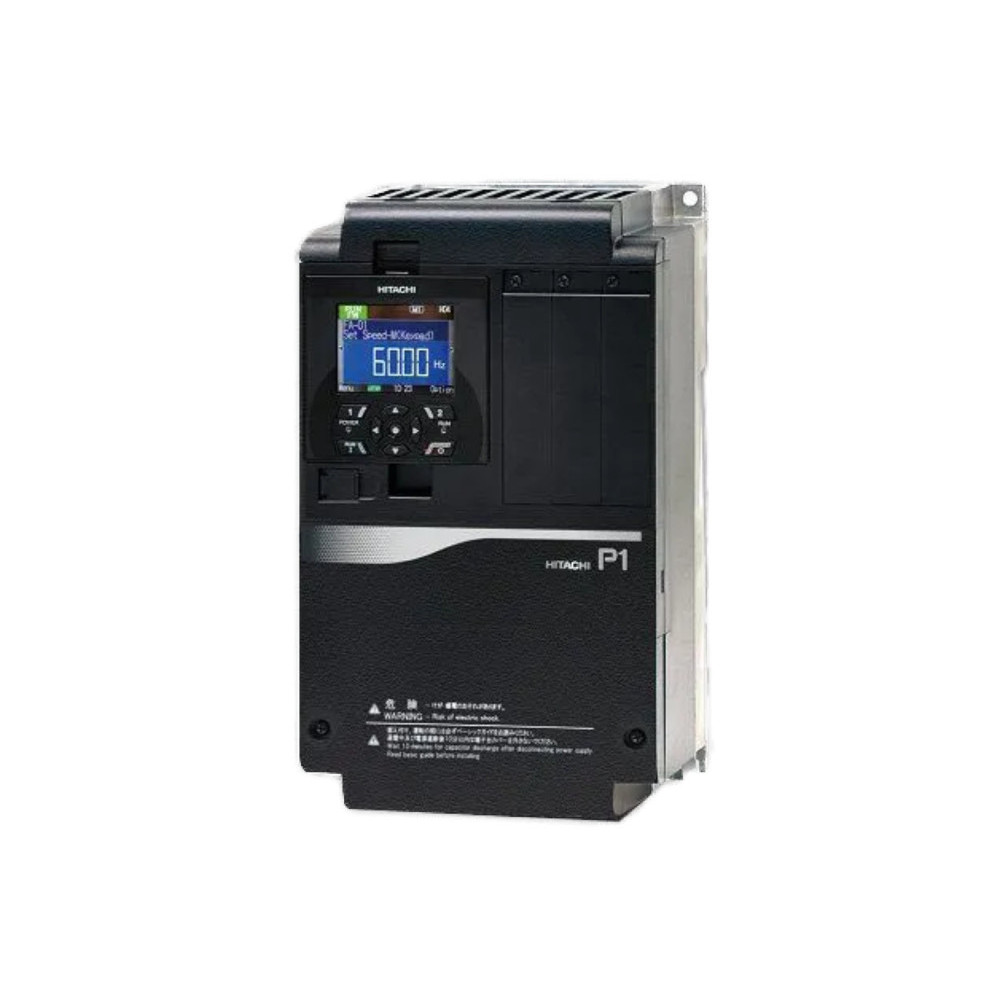

Image shown is a representation only. Actual product may vary
Hitachi P1-00083-HFUF 2.2kW 5.3A VFD
An AC drive from the SJ-P1 line by Hitachi, the P1-00083-HFUF hosts a 3ph 380...480VAC supply and a 2.2kW, 3HP, 5.3A output.
Terminal Information
9x DI (5.6mA @ 27VDC max. allowable input; When using an external power supply ΔV from COM = 18VDC min. when on & 3VDC max. when off; When using an internal power supply ΔV = 3VDC max. when on and 18VDC min. when off).
Pulse inputs A & B, max. input pulse of 32kpps. 3x common supply for DI + A&B.
5x DQ (Open collector outputs; <=4VDC drop when on; 27VDC max. allowable voltage /w/ 50mA max. allowable current). 1x common supply for DQ.
3x AI (2x voltage/current selectors, either -0.3VDC...+12VDC allowable for 10kΩ impedance or 24mA max. allowable for 100Ω impedance; 1x speed/feedback input, ±12VDC allowable for 10kΩ impedance).
2x AQ (Either 2mA max. output @ 10VDC or 250Ω impedance @ 20mA). 2x common for AI & AQ, 1x speed supply for AI.
Relay output A (Min. contact capacity of 10mA @ 5VDC; Max. contact capacity of 2A (resistance), 1A (inductive) @ 250VAC / 3A (resistance), 0.6A (inductive) @ 30VDC).
Alarm relay output C (Min. contact capacity of 10mA @ 100VAC / 100mA @ 5VDC; Max. contact capacity of 2A, 0.2A @ 250VAC / 3A, 0.6A @ 30VDC across terminals AL0 & AL1; Max. contact capacity of 1A, 0.2A @ 250VAC/30VDC across terminals AL0 & AL2).
Physical Characteristics
IP20, NEMA Open Type rated enclosure; 255mm x 150mm x 140mm (HxWxD), approx. weight of 3kg.
Rated for operation between -10°C...+50°C (CT), -10°C...+45°C (LD) or -10°C...+40°C (VLD) @ 20%...95% relative humidity, non-condensing.
Suitable for altitudes up to 1000m w/o derating, derate rated output 1%/Δ100m above this value up to a maximum of 2500m. Please contact Hitachi for operation above this altitude.
Ensure environment is free from corrosive gas, oil mist, and dust to ensure safe operation.
Our Repair Process
Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your P1-00083-HFUF, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your inverter.
Any Questions?
If you require any assistance or have any questions about whether this 2.2kW P1-00083-HFUF is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your requests, and can ship drives to you quickly.
Compliances
CE
Electromagnetic Compatibility - EN IEC 61800-3: 2018 Second Environment, Category C3
Electrical & Functional Safety - EN 61800-5-1: 2007, EN 61800-5-1: 2007/A1: 2017, EN 61800-5-1: 2007/A11: 2021
Ecodesign & Energy Efficiency: EN 61800-9-2: 2017
Environmental & Hazardous Substances (RoHS) - EN IEC 63000: 2018
UL
UL 61800-5-1, 1st Ed., Issue Date 2012-06-08, Revision Date 2021-02-11,
-Overvoltage Category 3 (OVCIII),
-Pollution Degree 2 (PD2)
P1-00083-HFUF Specifications
| Drive Application | General Purpose |
| Input Voltage (VAC) | 380...480 |
| Heavy Duty Power Output (kW) | 2.2 |
| Heavy Duty Power Output (HP) | 3 |
| Heavy Duty Output Current (A) | 5.3 |
| Normal Duty Power Output (kW) | 3.7 |
| Normal Duty Power Output (HP) | 5 |
| Normal Duty Output Current (A) | 6.7 |
| Input Phase | Three |
| Ingress Protection Rating | IP20 |
| NEMA Rating | NEMA Open Type |
| EMC Filter | Industrial |
| Drive Keypad | Yes |
| Drive Loop | Open, Closed |
| Drive Logic | Positive, Negative |
| Drive Communications | RS-485, Modbus |
| No. of Digital Inputs | 9 |
| No. of Analog Inputs | 3 |
| No. of Digital Outputs | 5 |
| No. of Analog Outputs | 2 |
| No. of Relay Outputs | 2 |
| PTC/KTY Input | 1 |
| Pulse Input | 2 |
| Pulse Output | 1 |
| Brake Chopper | Yes |
| Safe Torque Off | Dual |
| Height (mm) | 255 |
| Width (mm) | 150 |
| Depth (mm) | 140 |
| Weight (kg) | 3 |
