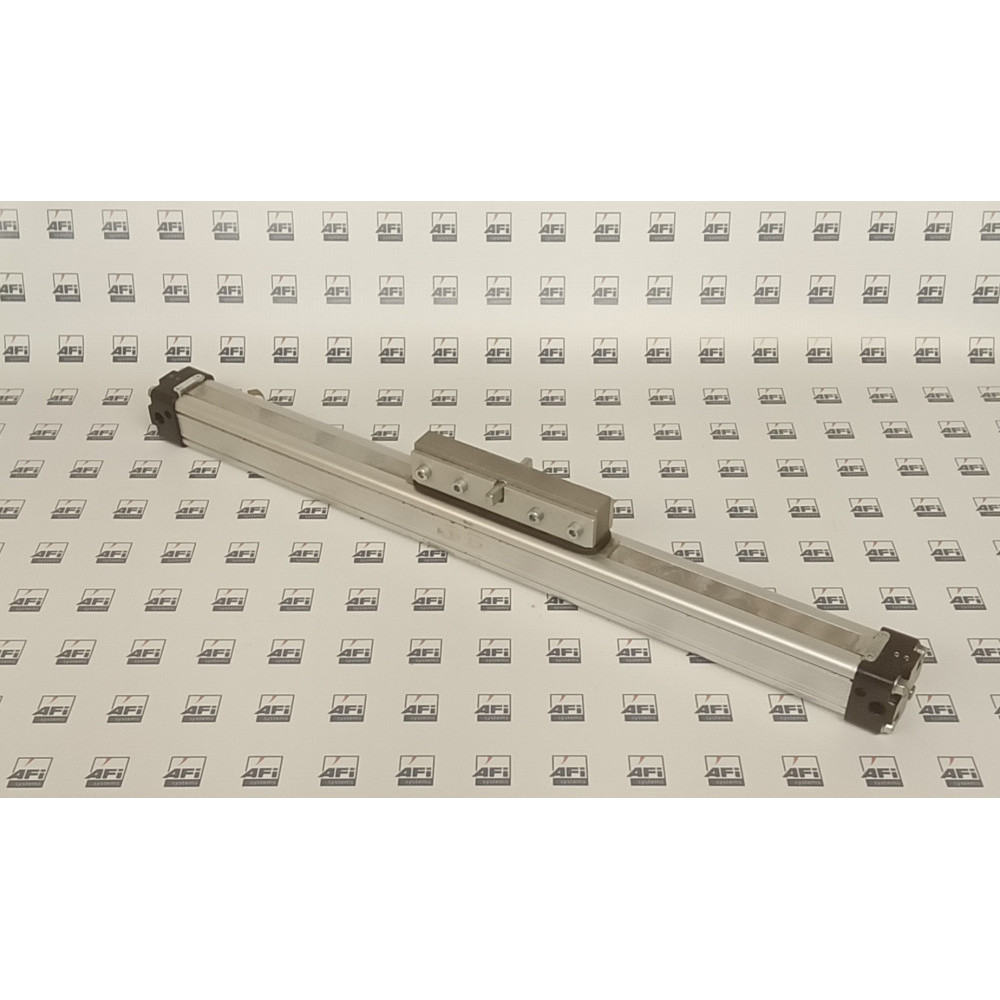

PARKER ORIGA P210/25-25X300MM
It is a double-acting cylinder, meaning compressed air can be applied to either side of the piston to control both the extension and retraction movements. Bore Diameter: It has a 25mm bore size. Stroke Length: It has a 300mm maximum stroke length. Material: The body is made from an optimized aluminum profile for maximum stiffness and minimum weight, while the end caps are also aluminum. Sealing System: It features corrosion-resistant steel inner and outer sealing bands that provide an optimum seal and protection from environmental contaminants, while maintaining very low friction. Position Sensing: It includes a magnetic piston as standard, allowing for non-contact position sensing using magnetic switches mounted on sensor slots located on three sides of the cylinder profile. Cushioning: Adjustable pneumatic end cushioning is standard at both ends to ensure smooth stopping and minimize shock. Operating Parameters: Maximum Operating Pressure: 8 bar (116 psi). Operating Temperature: Standard range is -10°C to +80°C (14°F to 176°F), with options for high or low temperature versions. Modularity: The OSP-P system is highly modular, allowing additional components like linear guides, brakes, and valves to be mounted directly to the actuator's body, providing installation flexibility.
