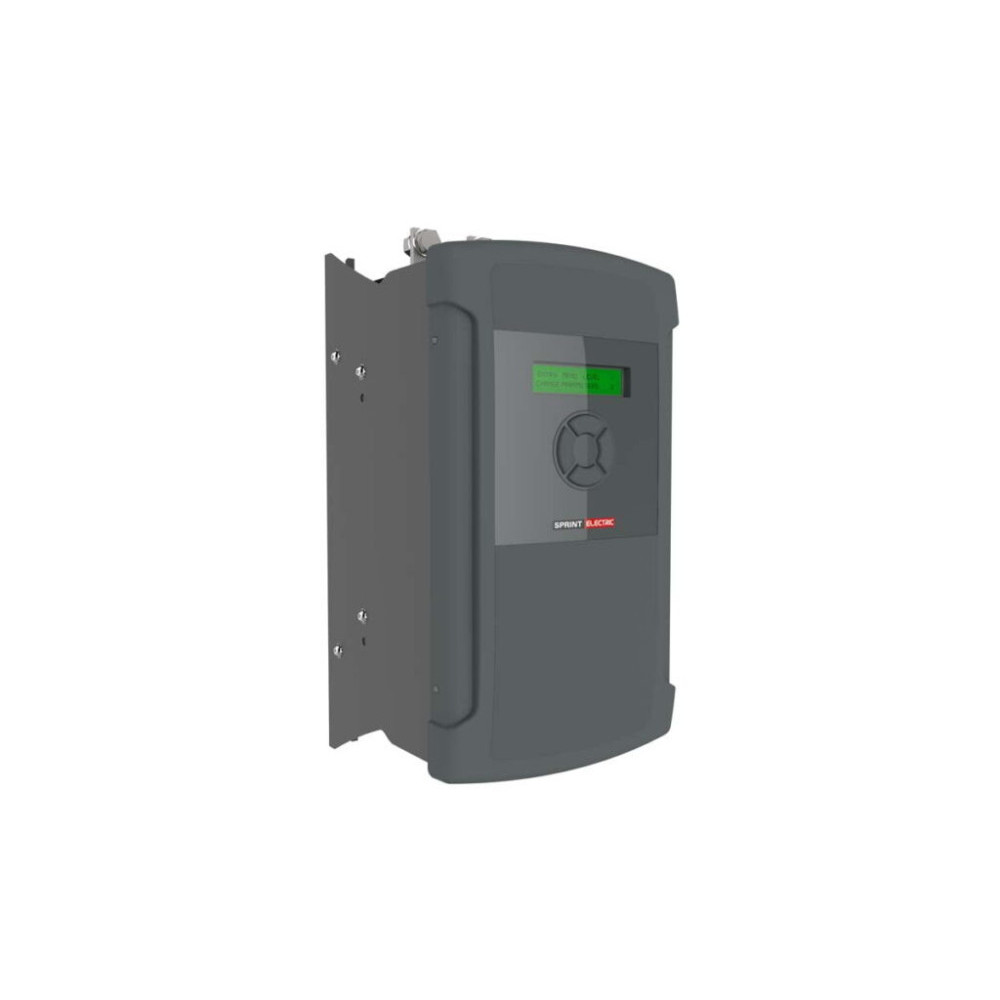

Sprint Electric PLX145 PLX Series DC Drive

PLX145 PLX Series 4Q Regenerative DC Thyristor Drive by Sprint Electric /w/ 3ph 12...480VAC Input ±10% @ 50/60Hz, 110/230VDC Control Supply and 145kW, 190HP, 330A Output.

Terminals Include 8x AI (± 5/10/20/30V), 4x AQ (3x Programmable), 4x DI (2x Optional Encoder Quadrature), 4x DI/DQ, 3x DQ.

Internal Armature Voltage AVF (ARM) Feedback, Tacho and Encoder (2 Wire Quadrature) Included as Standard.

Serial Communications RS-232 Port Fitted, ANSI-X3.28-2.5-B I Multi-Drop. Available Fieldbus Options: PROFIBUS, Devicenet. Ethernet using Driveweb Technology.

270A Input for Armature + <=16A for Field, 330A Input Fuse to suit Input Bridge @ 128,000A²s. 3ph Field and Armature Supplies Input Through Different Terminals, May be at Different Levels if Desired. Use a Choke in the Supply @ 25µH, 264A.

Forced Venting /w/ Control Fed Fan Supply Source. Rated for 40°C Ambient, 100mm Ventilation Above and Below, No Side Ventilation. 850W^max Heat Loss.

Frame Size 2; 216mm Wide x 218mm Deep x 410mm High /w/ 15kg Weight. Panel Mount /w/ M6 Screw Fixings on 174mm x 386mm Centers.

PLX145 Specifications
