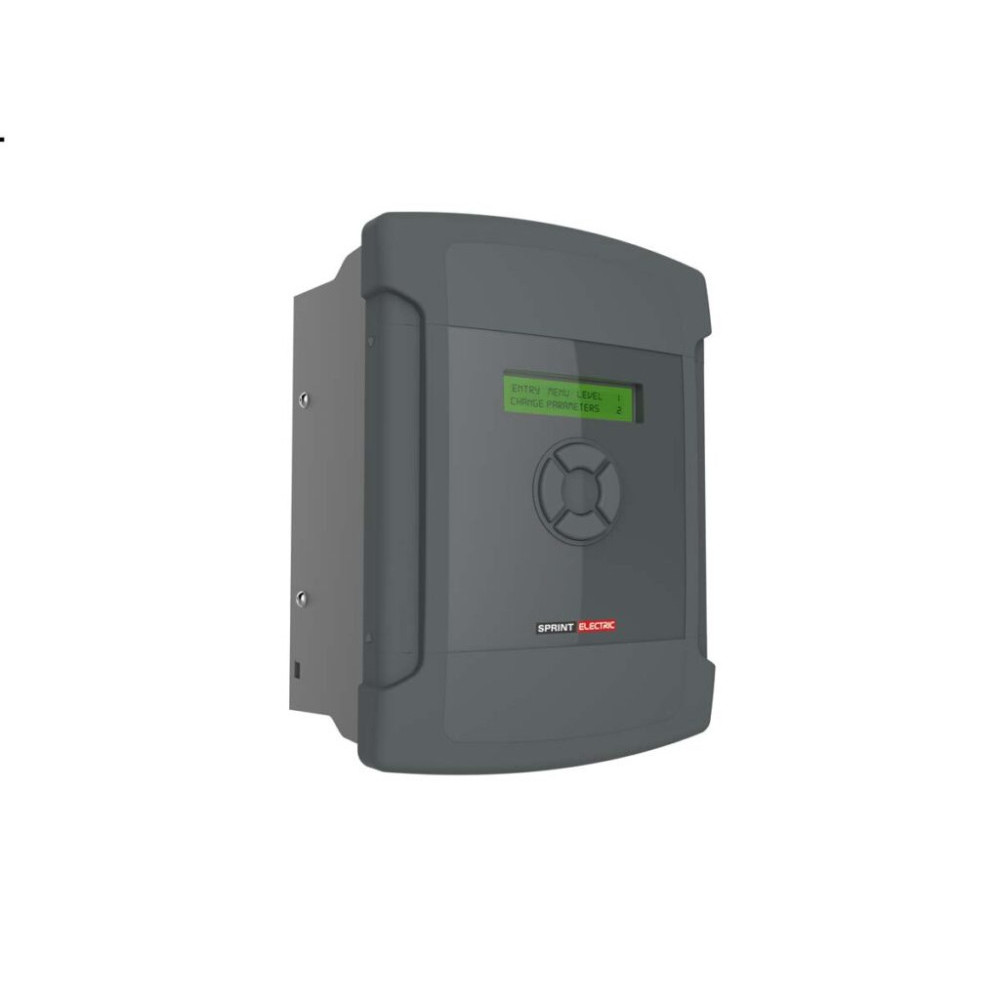

Sprint Electric PLX50 PLX Series DC Drive

PLX50 PLX Series 4Q Regenerative DC Thyristor Drive by Sprint Electric /w/ 3ph 12...480VAC Input ±10% @ 50/60Hz, 110/230VDC Control Supply and 50kW, 66.6HP, 123A Output.

Terminals Include 8x AI (± 5/10/20/30V), 4x AQ (3x Programmable), 4x DI (2x Optional Encoder Quadrature), 4x DI/DQ, 3x DQ.

Internal Armature Voltage AVF (ARM) Feedback, Tacho and Encoder (2 Wire Quadrature) Included as Standard.

Serial Communications RS-232 Port Fitted, ANSI-X3.28-2.5-B I Multi-Drop. Available Fieldbus Options: PROFIBUS, Devicenet. Ethernet using Driveweb Technology.

100A Input for Armature + <=8A for Field, 123A Input Fuse to suit Input Bridge @ 11,850A²s. 3ph Field and Armature Supplies Input Through Different Terminals, May be at Different Levels if Desired. Use a Choke in the Supply @ 50µH, 96A.

Forced Venting /w/ Control Fed Fan Supply Source. Rated for 40°C Ambient, 50mm Ventilation Above and Below, No Side Ventilation. 320W^max Heat Loss.

Frame Size 1; 216mm Wide x 174mm Deep x 289mm High /w/ 8kg Weight. Panel Mount /w/ M6 Screw Fixings on 174mm x 224mm Centers.

PLX50 Specifications
