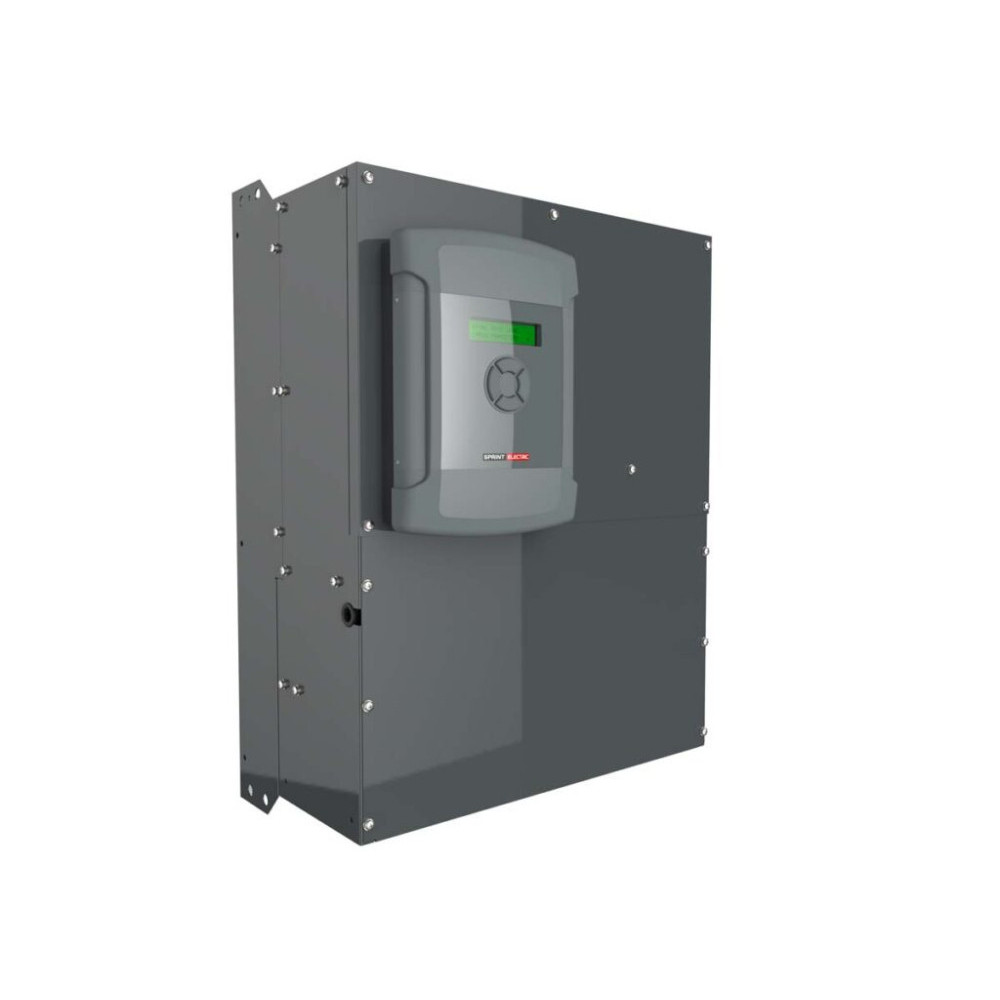

Sprint Electric PLX800 PLX Series DC Drive

PLX800 PLX Series 4Q DC Thyristor Drive by Sprint Electric /w/ 3ph 12...480VAC Input ±10% @ 50/60Hz, 110/230VDC Control Supply and 800kW, 1080HP, 1850A Output.

Terminals Include 8x AI (± 5/10/20/30V), 4x AQ (3x Programmable), 4x DI (2x Optional Encoder Quadrature), 4x DI/DQ, 3x DQ.

Internal Armature Voltage AVF (ARM) Feedback, Tacho and Encoder (2 Wire Quadrature) Included as Standard.

Serial Communications RS-232 Port Fitted, ANSI-X3.28-2.5-B I Multi-Drop. Available Fieldbus Options: PROFIBUS, Devicenet. Ethernet using Driveweb Technology.

1520A Armature Input + <=64A Field, 1850A Fuse to Suit Input Bridge @ 1,900,000A²s (4,400,000 A²s for MV/HV Variants). 3ph Field and Armature Supplies Input Through Different Terminals, May be at Different Levels if Desired.

Forced Rear Entry Venting /w/ Required External Fan Supply Source; 200VA 240V @ 50/60Hz. Rated for 40°C Ambient, 200mm Ventilation Above and Below, No Side Ventilation. 4700W^max Heat Loss.

Frame Size 5; 506mm Wide x 350mm Deep x 700mm High /w/ 90kg Weight. Panel Mount /w/ M8 Screw Fixings on 680mm x 254mm Centers.

Available with Top Entry AC Busbars (Pn. PLX800TE) or Bottom Entry AC Busbars (Pn. PLX800BE) - Please Specify When Ordering. Additionally, 12...600VAC, Medium Voltage (Pn. PLX800XXMV) and 12...690VAC, High Voltage (Pn. PLX800XXHV) Variants are Available - Please Enquire for Further Details.
