Image shown is a representation only. Actual product may vary -
-
-

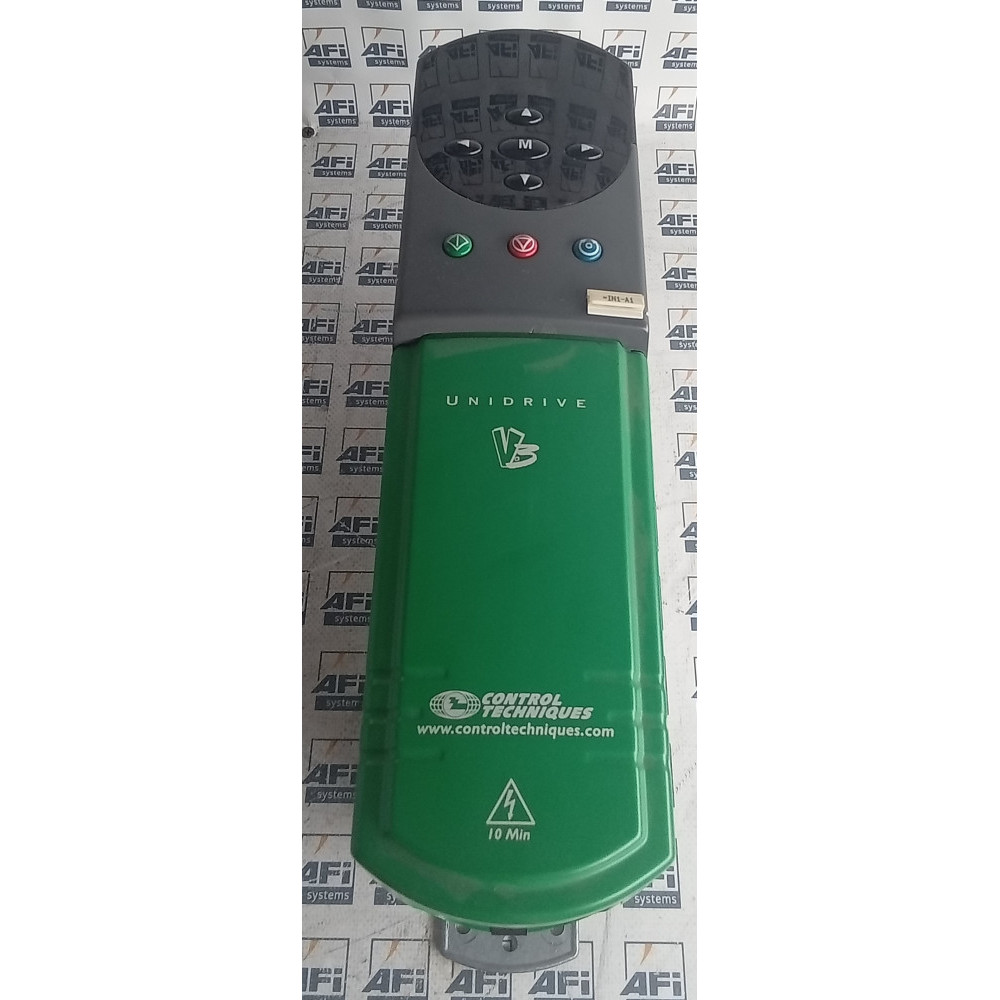

Control Techniques Unidrive UNI1402 AC Inverter Drive
The Control Techniques UNI1402 is a 3 phase, 1.1kW, 2.8 amp AC inverter drive from the Unidrive Classic series.
AFi Systems are able to both supply and repair this drive and also other drives from the Unidrive Classic range.
In a breakdown situation we know that speed is key, so if your requirement is urgent give us a call for the fastest possible delivery.
All parts are supplied with our standard 2 year warranty.
UNI1402 Specifications
| AC Drive Application | High Performance, HVAC Fan & Pump |
| AC Drive Depth (mm) | 200 |
| AC Drive Heavy Duty Output (kw) | 1.1 |
| AC Drive Height (mm) | 335 |
| AC Drive Input Voltage (VAC) | 380...480V AC |
| AC Drive Keypad | Yes |
| AC Drive Logic | Negative, Positive |
| AC Drive Loop | Open, Closed |
| AC Drive Nr Analog Inputs | 3 |
| AC Drive Nr Analog Outputs | 2 |
| AC Drive Nr Digital Inputs | 3 |
| AC Drive Nr Digital Outputs | 3 |
| AC Drive Phase | Three Phase |
| AC Drive Protection | IP00 |
| AC Drive Width (mm) | 95 |
| AC Drive Heavy Duty Output (Amps) | 2.8 |
Tags: UNI1402,
