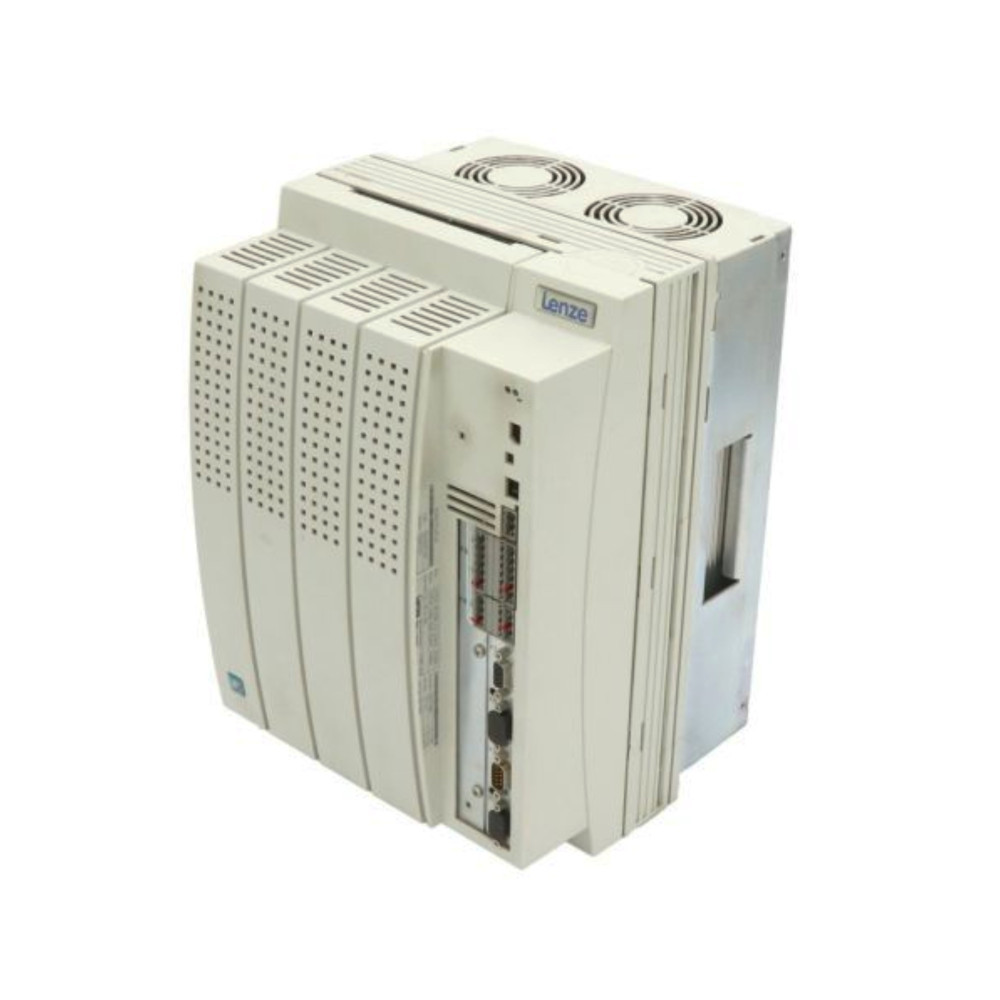

EVS9328-ESV004 Lenze

Manufactured by Lenze and part of the 9300 Servo range, the EVS9328-ESV004 is a servo drive with a 3ph 380...480VAC supply and 22kW, 30HP, 47A output. With years of experience working on Lenze products, AFi Systems are fully able to repair and supply the full range of 9300 Servo drives.

General Information

Within a NEMA 1, IP20 rated enclosure, measuring 402mm x 250mm x 250mm (HxWxD) with a weight of 15kg.

Terminals include; 2x AI, (-10V...+10V, -20mA...+20mA), 2x AQ (-10V...+10V @ 2mA^max), 5x DI (8mA @ +24V; 0V^LOW...+3V^LOW, +12V^HIGH...+30V^HIGH), 2x DQ (50mA^max; 0V^LOW...+3V^LOW, +12V^LOW...+30V^LOW) and PTC/KTY input.

Drive Application

The EVS9328-ESV004 is a servo inverter, denoted by the "-ES" suffix, supporting the basic functions most often required in a servo drive.

It contains an electronic gearbox and can support multiple drives running in synchronous operation through digital frequency coupling. Adjustable gearbox factors can be used to achieve this synchronous operation with low fuss and high flexibility. Feedback systems such as SinCos encoders are used in place of a standard resolver solution to ensure utmost precision.

This drive is suitable for robotics, conveying and sorting, travelling drive, and shaper drive applications amongst others.

Communication Modules

The 9300 Servo range of servo drives supports a wide host of communication modules. These are listed below, with their order numbers and interface types.

• Keypad XT - EMZ9371BC

• LECOM-A/B (RS-422/485) - EMF2102IBV001

• LECOM-B (RS-485) - EMF2102IBV002

• LECOM-LI (Optical Fibre) - EMF2102IBV003

• LON - EMF2141IB

• INTERBUS - EMF2113IB

• INTERBUS Loop - EMF2112IB

• PROFIBUS-DP - EMF2133IB

• DeviceNet/CANopen - EMF2175IB

Our Repair Process

Any products sent for repair at AFi Systems come with a 2-year warranty to ensure you can be confident in your product upon its return. We will thoroughly service your 9300 Servo drive, ensuring it is bench tested and confirmed operational. Any components subject to degradation over time such as fans and electrolytic capacitors will be replaced to ensure a greater lifespan for your servo drive.

Any Questions?

If you require any assistance or have any questions about whether this 22kW 9300 Servo drive is right for your application and/or environment, be sure to call or email for help. AFi Systems are happy to fulfill your 9300 Servo requests, and can ship drives to you quickly.
