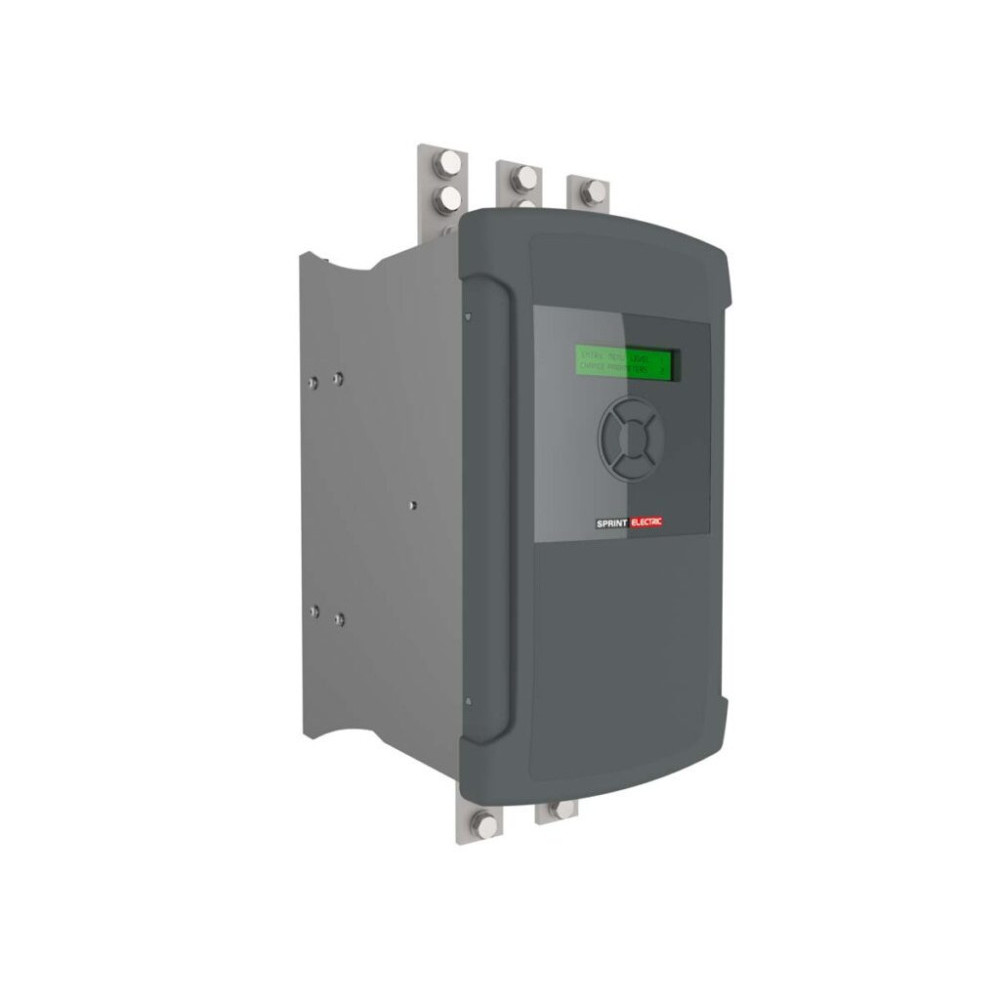

Sprint Electric PL265 PL Series DC Drive

PL265 PL Series 2Q DC Thyristor Drive by Sprint Electric /w/ 3ph 12...480VAC Input ±10% @ 50/60Hz, 110/230VDC Control Supply and 265kW, 350HP, 630A Output.

Terminals Include 8x AI (± 5/10/20/30V), 4x AQ (3x Programmable), 4x DI (2x Optional Encoder Quadrature), 4x DI/DQ, 3x DQ.

Internal Armature Voltage AVF (ARM) Feedback, Tacho and Encoder (2 Wire Quadrature) Included as Standard.

Serial Communications RS-232 Port Fitted, ANSI-X3.28-2.5-B I Multi-Drop. Available Fieldbus Options: PROFIBUS, Devicenet. Ethernet using Driveweb Technology.

520A Armature Input + <=32...50A Field, 630A Fuse to Suit Input Bridge @ 306,000A²s. 3ph Field and Armature Supplies Input Through Different Terminals, May be at Different Levels if Desired. Use a Choke in the Supply @ 15µH, 504A.

Forced Rear Entry Venting /w/ Required External Fan Supply Source; 50VA 110V @ 50/60Hz. Rated for 40°C Ambient, 100mm Ventilation Above and Below, No Side Ventilation. 1600W^max Heat Loss.

Frame Size 3; 216mm Wide x 314mm Deep x 504mm High /w/ 24kg Weight. Panel Mount /w/ M6 Screw Fixings on 174mm x 386mm Centers.
