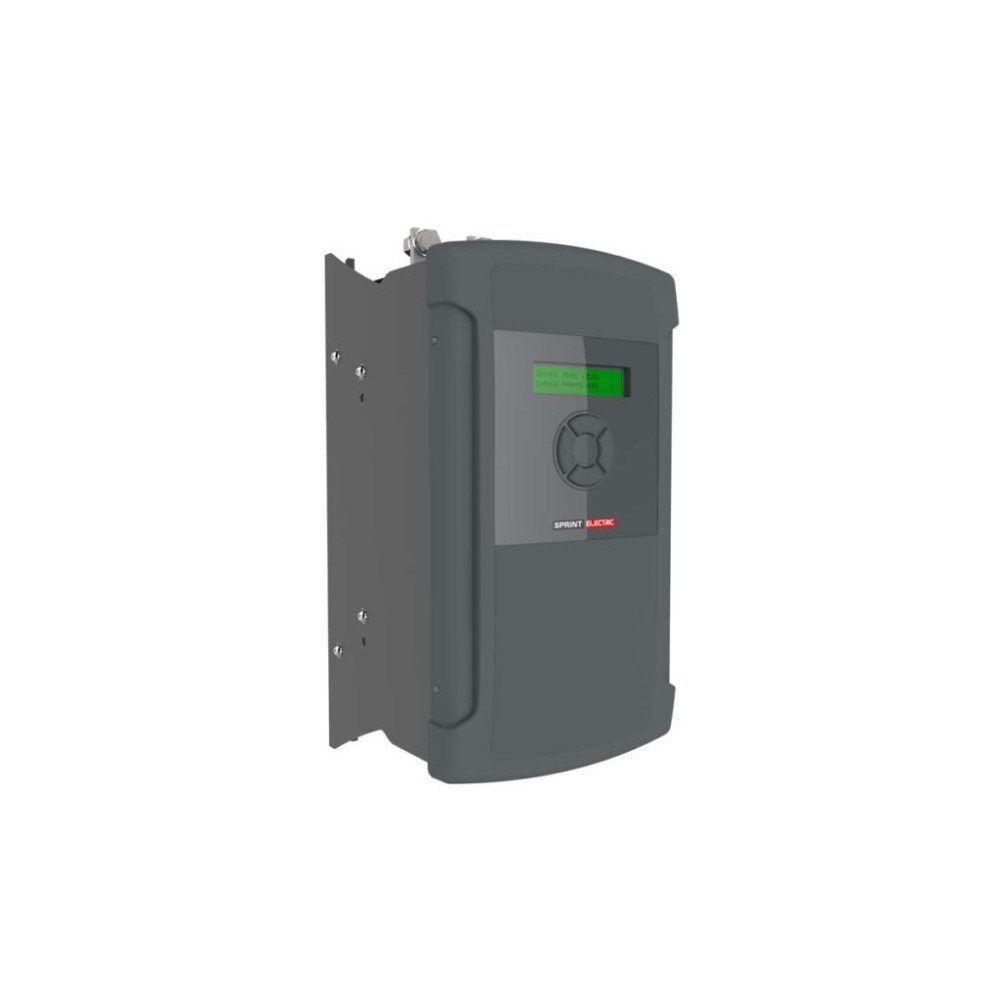

Sprint Electric PL65 PL Series DC Drive

PL65 PL Series 2Q DC Thyristor Drive by Sprint Electric /w/ 3ph 12...480VAC Input ±10% @ 50/60Hz, 110/230VDC Control Supply and 65kW, 90HP, 155A Output.

Terminals Include 8x AI (± 5/10/20/30V), 4x AQ (3x Programmable), 4x DI (2x Optional Encoder Quadrature), 4x DI/DQ, 3x DQ.

Internal Armature Voltage AVF (ARM) Feedback, Tacho and Encoder (2 Wire Quadrature) Included as Standard.

Serial Communications RS-232 Port Fitted, ANSI-X3.28-2.5-B I Multi-Drop. Available Fieldbus Options: PROFIBUS, Devicenet. Ethernet using Driveweb Technology.

124A Armature Input + <=16A Field, 155A Fuse to Suit Input Bridge @ 60,000A²s. 3ph Field and Armature Supplies Input Through Different Terminals, May be at Different Levels if Desired. Use a Choke in the Supply @ 40µH, 216A.

Forced Venting /w/ Control Fed Fan Supply Source, Rated for 40°C Ambient, 100mm Ventilation Above and Below, No Side Ventilation. 350W^max Heat Loss.

Frame Size 2; 216mm Wide x 218mm Deep x 410mm High /w/ 15kg Weight. Panel Mount /w/ M6 Screw Fixings on 174mm x 386mm Centers.

PL65 Specifications
