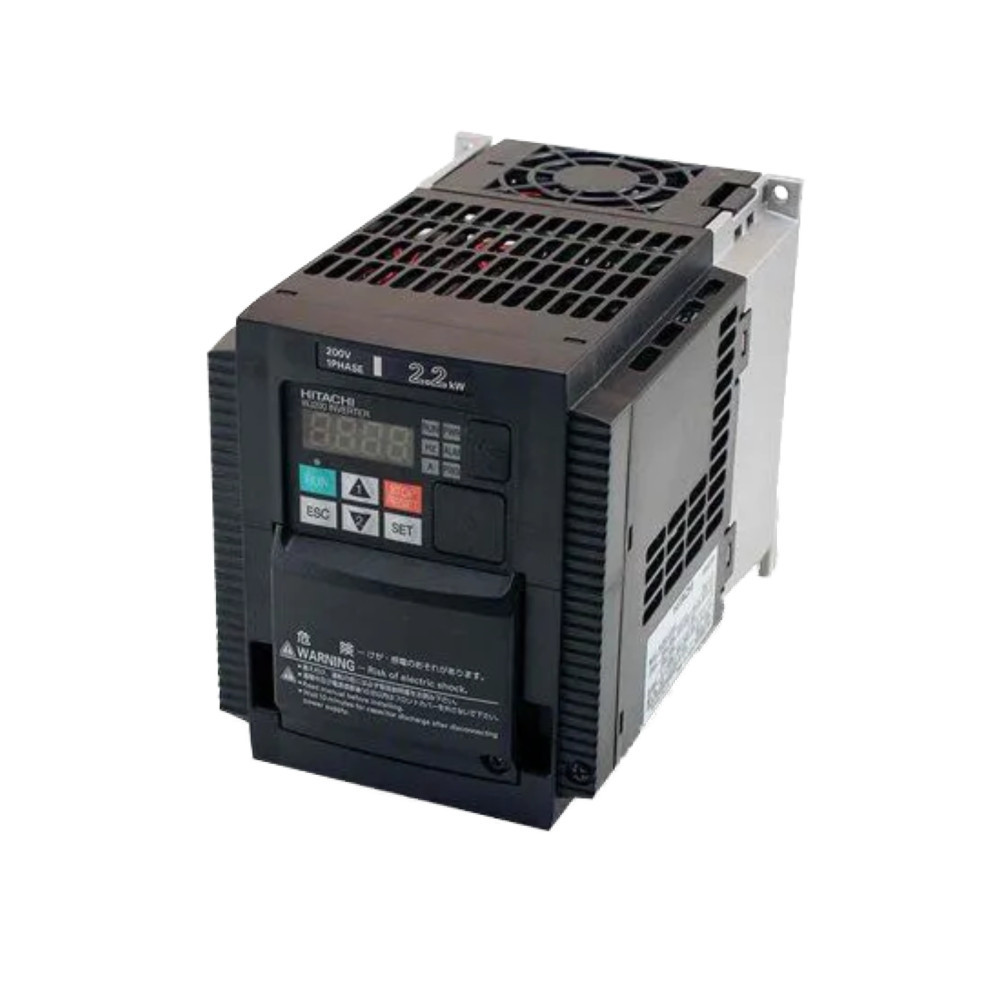

WJ200-030HF Hitachi 4.0HP 7.2A Three Phase 380-480V Inverter
The WJ200-030HF is a legacy product and although still available it is not recommended for new designs. The WJ200 series has been superceded by the WJ-C1. Upgrading is simple as the WJ-C1 has the same footprint, and settings can be copied from the WJ200 to the WJ-C1.
The WJ200-030HF is a 4.0HP variable speed drive from the Hitachi WJ200 range, with a rated output current of 7.2A for constant torque applications running from a 380-480V Three Phase supply. The WJ200-030HF can also be used with a 5.0HP or 8.8A motor in variable torque application such as centrifugal fans and pumps.
The WJ200 features advanced sensorless vector control with a high starting torque of up to 200% and dramatically improved speed stability. A brake chopper is included as standard in all models as is the integral keypad, although an enhanced keypad or programming via the built in USB interface is also available.
Side by side mounting is possible to save panel space, and further space and cost savings can be achieved removing external components by utilizing features such as the safe-stop and Easy Sequence (EzSQ) which allows PLC like functionality.
The WJ200-030HF is capable of driving permanent magnet (PMAC) motors as well as standard induction motors.
The WJ200 is low maintenance by design, with DC bus capacitors and fans having a design lifetime of 10 years, and screwless spring loaded terminals don't just make installation simple, they also don't need tightening during service.
Modbus communication is built in as standard, however optional communication cards can add a variety of different fieldbus protocols, along with EzCom peer to peer communications between drives being possible, with 1 drive acting as administrator and the others as master or slave.
WJ200-030HF Specifications
| AC Drive Application | General Purpose, HVAC Fan & Pump, Simple |
| AC Drive Brake Chopper | Yes |
| AC Drive Communications | Modbus Comms |
| AC Drive Conformal Coating | No |
| AC Drive Filter | Industrial |
| AC Drive Heavy Duty Output (kw) | 3 |
| AC Drive Input Voltage (VAC) | 380-480V |
| AC Drive Keypad | Yes |
| AC Drive Loop | Open |
| AC Drive Normal Duty Output (kw) | 4 |
| AC Drive Nr Analog Inputs | 2 |
| AC Drive Nr Analog Outputs | 1 |
| AC Drive Nr Digital Inputs | 7 |
| AC Drive Nr Digital Outputs | 2 |
| AC Drive Nr Relay Outputs | 1 |
| AC Drive Phase | Three Phase |
| AC Drive PTC/KTY Input | 1 |
| AC Drive Pulse Input | 1 |
| AC Drive Pulse Output | 1 |
| AC Drive Safe Torque Off | Dual |
| AC Drive Heavy Duty Output (HP) | 4.0 |
| AC Drive Normal Duty Output (HP) | 5.0 |
| AC Drive Heavy Duty Output (Amps) | 7.2 |
| AC Drive Normal Duty Output (Amps) | 8.8 |
