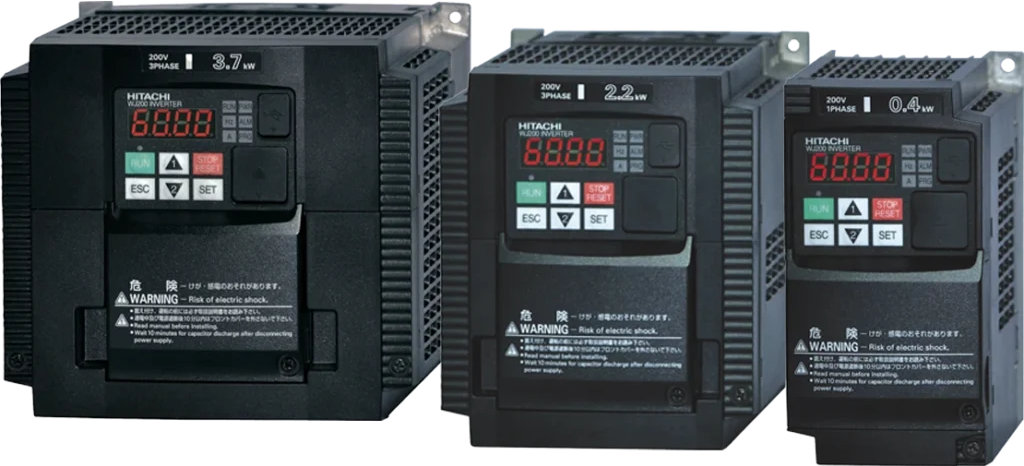

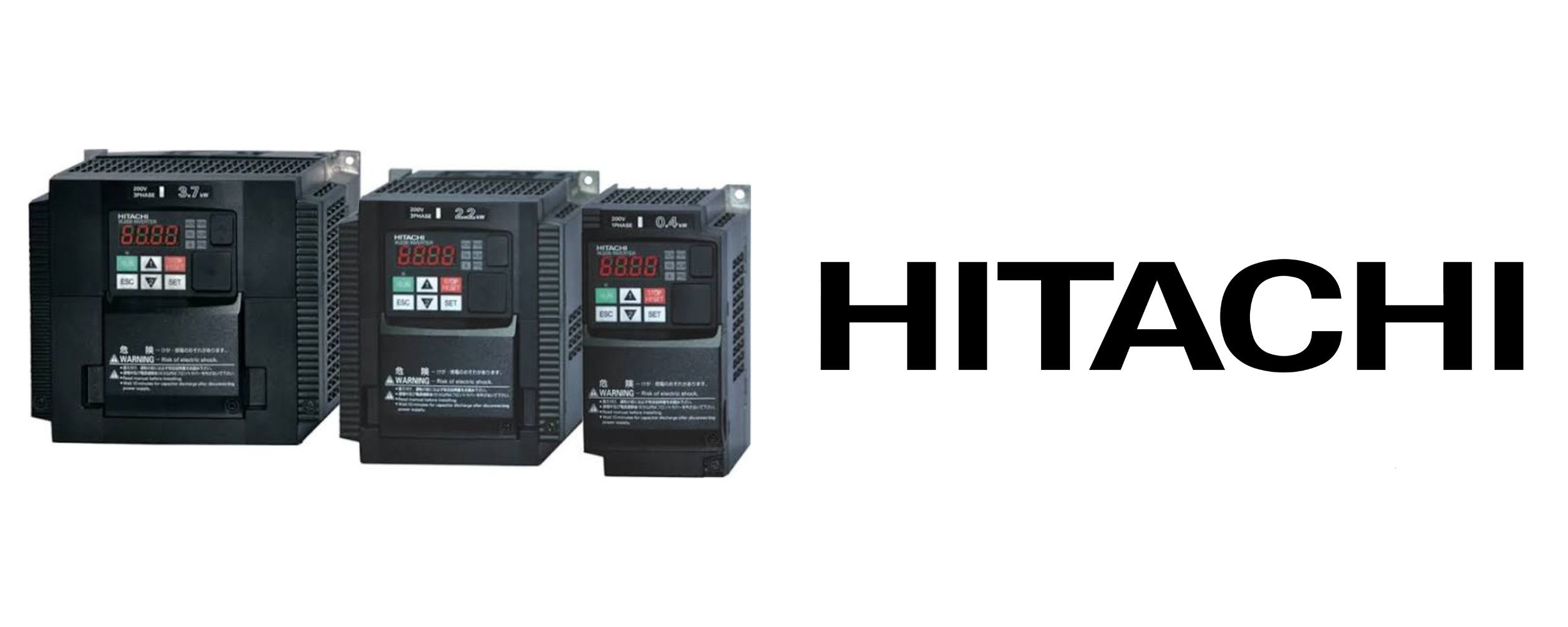

The WJ200 range by Hitachi is a series of AC inverters suitable for a wide span of use-cases. With models taking 100...120VAC, 200...240VAC, or 380...480VAC supply @50/60Hz for single or three phase systems and a power range spanning 0.1kW...15kW. The line has since been replaced by Hitachi's WJ-C1 series.
All repairs and refurbished units sold through AFi Systems come with a 2-year warranty!

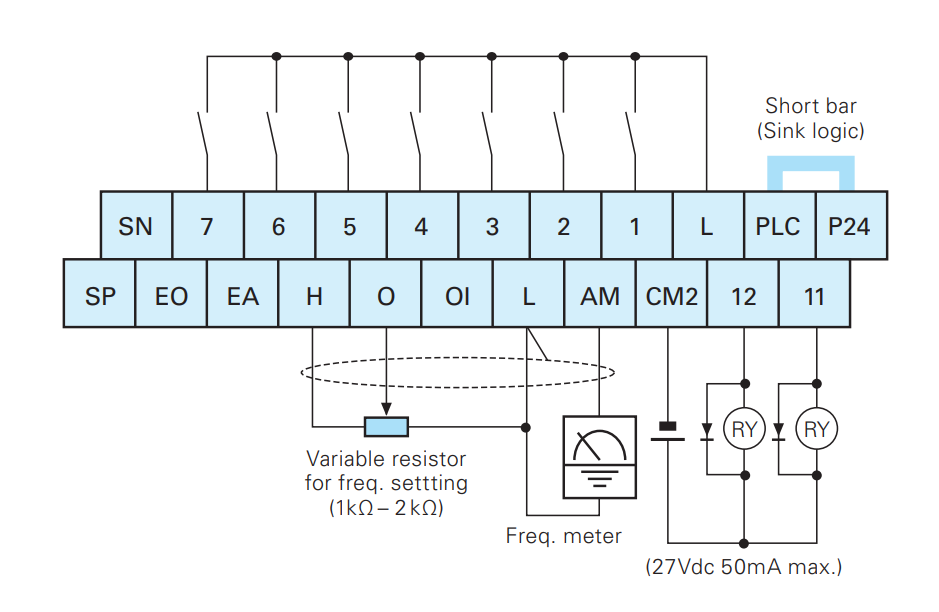

The WJ200 sports an expansive I/O, enabling PLC-like functionality with terminals to support seven intelligent inputs, two intelligent outputs, two analog inputs and one analog output, as well as dual terminals for STO operation.
Free evaluations for your WJ200 drives, with a no-fix, no-fee policy!
AFi Systems specialises in the repair and supply of units from the WJ200 range. Service includes replacement of any components subject to degradation over time, such as electrolytic capacitors and fans, ensuring an extended lifespan for your WJ200 inverters.
A brochure detailing the features and specifications of inverters from the WJ200 line.
WJ200-002LF - Hitachi
Hitachi WJ200-002LF WJ200 Series 3ph 200...240VAC 0.2kW 0.25HP 1.6A Inverter..
WJ200-030HF - Hitachi
Hitachi WJ200-030HF WJ200 Series 3ph 380...480VAC 3kW 4HP 7.2A AC Drive..
WJ200-040HF - Hitachi
Hitachi WJ200-040HF WJ200 Series 3ph 380...480VAC 4kW 5HP 9.2A VFD..
WJ200-110HF - Hitachi
Hitachi WJ200-110HF WJ200 Series 3ph 380...480VAC 11kW 15HP 24A VSD..
WJ200-004HF - Hitachi
Hitachi WJ200-004HF WJ200 Series 3ph 380...480VAC 0.37kW 0.5HP 1.8A AC Drive..
WJ200-004SF - Hitachi
Hitachi WJ200-004SF WJ200 Series 1ph 200...240VAC 0.37kW 0.5HP 3A VSD..
WJ200-001LF - Hitachi
Hitachi WJ200-001LF WJ200 Series 3ph 200...240VAC 0.1kW 0.125HP 1A AC Drive..
WJ200-001SF - Hitachi
Hitachi WJ200-001SF WJ200 Series 1ph 200...240VAC 0.1kW 0.125HP 1A AC Drive..
WJ200-002SF - Hitachi
Hitachi WJ200-002SF WJ200 Series 1ph 200...240VAC 0.2kW 0.25HP 1.6A Inverter..
WJ200-004LF - Hitachi
Hitachi WJ200-004LF WJ200 Series 3ph 200...240VAC 0.37kW 0.5HP 3A Inverter..
WJ200-004MF - Hitachi
Hitachi WJ200-004MF WJ200 Series 1ph 100...120VAC 0.37kW 0.5HP 3.5A VFD..
WJ200-004SFE - Hitachi
Hitachi WJ200-004SFE WJ200 Series 1ph 200...240VAC 0.37kW 0.5HP 3A VFD..
WJ200-007HF - Hitachi
Hitachi WJ200-007HF WJ200 Series 3ph 380...480VAC 0.75kW 1HP 3.4A AC Drive..
WJ200-007LF - Hitachi
Hitachi WJ200-007LF WJ200 Series 3ph 200...240VAC 0.75kW 1HP 5A AC Drive..
WJ200-007MF - Hitachi
Hitachi WJ200-007MF WJ200 Series 1ph 100...120VAC 0.75kW 1HP 5A Inverter..
WJ200-007SF - Hitachi
Hitachi WJ200-007SF WJ200 Series 1ph 200...240VAC 0.75kW 1HP 5A VFD..
WJ200-007SFE - Hitachi
Hitachi WJ200-007SFE WJ200 Series 1ph 200...240VAC 0.75kW 1HP 5A VSD..
WJ200-015HF - Hitachi
Hitachi WJ200-015HF WJ200 Series 3ph 380...480VAC 1.5kW 2HP 4.8A Inverter..
WJ200-015LF - Hitachi
Hitachi WJ200-015LF WJ200 Series 3ph 200...240VAC 1.5kW 2HP 8A Inverter..
WJ200-015SF - Hitachi
Hitachi WJ200-015SF WJ200 Series 1ph 200...240VAC 1.5kW 2HP 8A VSD..
WJ200-022HF - Hitachi
Hitachi WJ200-022HF WJ200 Series 3ph 380...480VAC 2.2kW 3HP 5.5A VSD..
WJ200-022LF - Hitachi
Hitachi WJ200-022LF WJ200 Series 3ph 200...240VAC 2.2kW 3HP 11A VSD..
WJ200-022SF - Hitachi
Hitachi WJ200-022SF WJ200 Series 1ph 200...240VAC 2.2kW 3HP 11A VSD..
WJ200-037LF - Hitachi
Hitachi WJ200-037LF WJ200 Series 3ph 200...240VAC 3.7kW 5HP 17.5A VFD..
WJ200-055HF - Hitachi
Hitachi WJ200-055HF WJ200 Series 3ph 380...480VAC 5.5kW 7.5HP 14.8A Inverter..
